SUNDAK
LITHIUM ION
LITHIUM ION
BATTERY PACK CHARGER

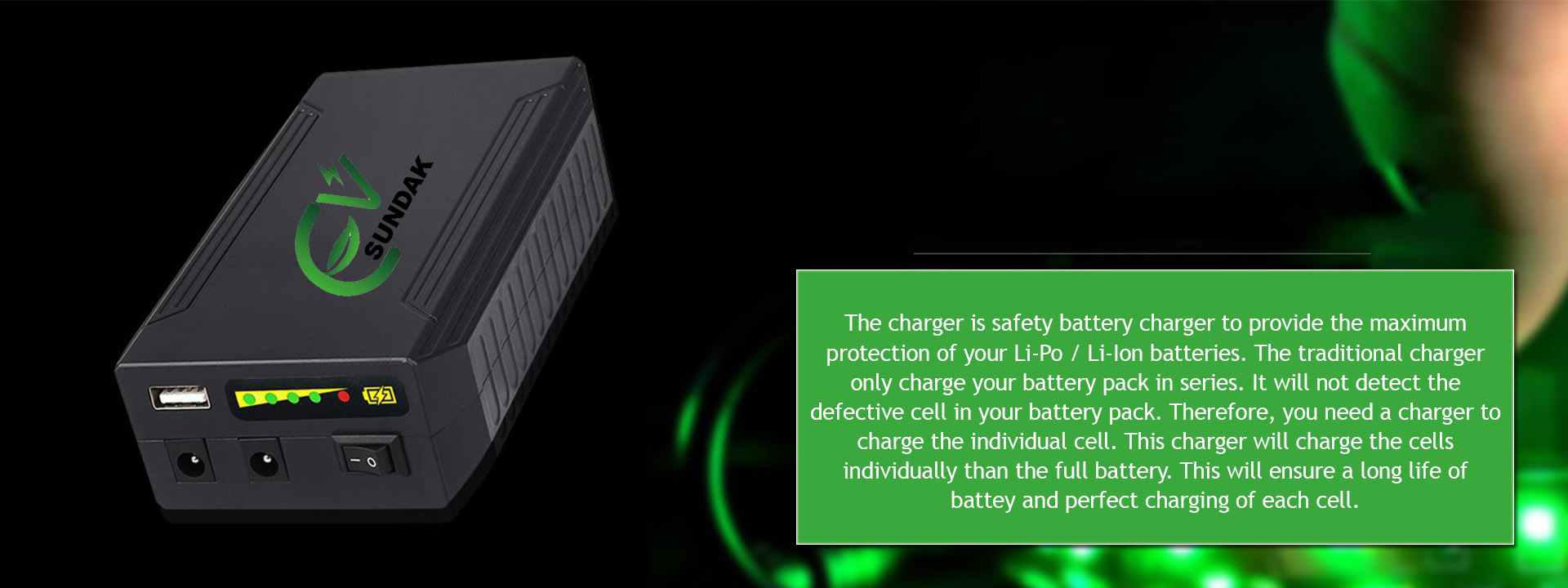

The charger is safety battery charger to provide the maximum protection of your Li-Po / Li-Ion batteries. The traditional charger only charge your battery pack in series. It will not detect the defective cell in your battery pack. Therefore, you need a charger to charge the individual cell. This charger will charge the cells individually than the full battery. This will ensure a long life of battey and perfect charging of each cell. This charger charges all 2 or 3 cells of the battery individually and has indication for charge and power. This product works on 12VDC.
Specifications
| 36V Li ion Battery Charger : | 48V Li ion Battery Charger : | 60V Li ion Battery Charger : |
|---|---|---|
| Charger Type : Li ion Battery Charger | Charger Type : Li ion Battery Charger | Charger Type : Li ion Battery Charger |
| Mode : CC-CV Charging | Mode : CC-CV Charging | Mode : CC-CV Charging |
| Stage : 3 Stage Charging | Stage : 4 Stage Charging | Stage : 4 Stage Charging |
| Indications : 3 Color Red , Green ,Orange for Charging and Full Stage | Indications : 4 Stage LEDs to Show Percentage of Charging | Indications : 4 Stage LEDs to Show Percentage of Charging |
| Input Voltage : 165V – 285V AC RMS , Single Phase Supply | Input Voltage : 165V – 285V AC RMS , Single Phase Supply | Input Voltage : 165V – 285V AC RMS , Single Phase Supply |
| Frequency : 50/60Hz | Frequency : 50/60Hz | Frequency : 50/60Hz |
| Peak Output : 42V DC | Peak Output : 54.6-58.8 V DC | Peak Output 67-72 V DC |
| Nominal Output : 36V DC | Nominal Output : 48-51V DC | Nominal Output : 54V – 62.4 V DC |
| Chemistry Support : NMC, LiPO Chemistry | Chemistry Support : NMC, LiFEPO4, LiPO Chemistry | Chemistry Support : NMC, LiFEPO4 Chemistry |
| Peak Current : 2A | Peak Current : 8 A | j. Peak Current : 8 A |
| Ripple : <2 % | Ripple : <2 % | Ripple : <2 % |
| Efficiency : >88% | Efficiency : >82% | Efficiency : >82% |
| Input Power Cord : 2 Core | Input Power Cord : 3 Core | Input Power Cord : 3 Core |
| Output Power Cord : 2 Cord | Output Power Cord : 3 Core | Output Power Cord : 3 Core |
| Battery Capacity Support : Upto 12AH | Battery Capacity Support : Upto 30AH | Battery Capacity Support : Upto 30AH |
| Body Casing : Plastic with Fan Support | Body Casing : Plastic with Fan Support | Body Casing : Plastic with Fan Support / Sheet Metal |
| Charging Time: 3-4 Hrs. | Charging Time: 3-4 Hrs. | Charging Time: 4-6 Hrs. |
| Safety: Overload Protection, Under and Over Voltage, Short Circuit, Battery Reve | Safety: Overload Protection, Under and Over Voltage, Short Circuit, Battery Reverse, | Safety: Overload Protection, Under and Over Voltage, Short Circuit, Battery Reverse, |
| Over Temperature, Over Time. | Over Temperature, Over Time. | Over Temperature, Over Time. |
| 48V Li ion Battery Charger : | 60V Li ion Battery Charger : | |
| Charger Type : Li ion Battery Charger | Charger Type : Li ion Battery Charger | |
| Mode : CC-CV Charging | Mode : CC-CV Charging | |
| Stage : 4 Stage Charging | Stage : 4 Stage Charging | |
| Indications : 4 Stage LEDs to Show Percentage of Charging | Indications : 4 Stage LEDs to Show Percentage of Charging | |
| Input Voltage : 165V – 285V AC RMS , Single Phase Supply | Input Voltage : 165V – 285V AC RMS , Single Phase Supply | |
| Frequency : 50/60Hz | Frequency : 50/60Hz | |
| Peak Output : 54.6-58.8 V DC | Peak Output 67-72 V DC | |
| Nominal Output : 48-51V DC | Nominal Output : 54V – 62.4 V DC | |
| Chemistry Support : NMC, LiFEPO4, LiPO Chemistry | Chemistry Support : NMC, LiFEPO4 Chemistry | |
| Peak Current : 8 A | Peak Current : 8 A | |
| Ripple : <2 % | Ripple : <2 % | |
| Efficiency : >82% | Efficiency : >82% | |
| Input Power Cord : 3 Core | Input Power Cord : 3 Core | |
| Output Power Cord : 3 Core | ||
| Battery Capacity Support : Upto 30AH | ||
| Body Casing : Plastic with Fan Support / Sheet Metal | ||
| Charging Time: 4-6 Hrs. | ||
| Safety: Overload Protection, Under and Over Voltage, Short Circuit, Battery Reverse, | ||
| Over Temperature, Over Time. | ||
